Titan West 14' Stationary Loading Chute

- Constructed of 2" Heavy-Duty Square Tubing
- All-Steel Floor of 1/8" Floor Plate to Last Indefinitely
- Steel Cleats Spaced every 11" to Prevent Slipping
- Sides Constructed of 16-Guage Sheet Metal
- Overlapping Gates at top of Ramp fold to Meet Truck or Close Off Exit
- Catwalk on Side of Chute Aids in Loading Cattle
- Spring-Loaded Bumper of 1/2" Plate Steel on Front to Match Truck Bed
- 14' Long x 4' High Loadout
- Sides 69" Above Floor
- Optional Rumbar© Flooring


Titan West 12' & 16' Portable Loading Chute

- Constructed of 2" Heavy-Duty Square Tubing
- Sides are 1-1/2" Square Tubing, Covered with 48", 16-Guage Sheet Metal
- Wooden Floor has Metal Cleats for Sure Footing - Adjustable to 4 Height Settings
- Hitch Tongue Drops Down, Swings to Either Side & Removable
- Hinged Adjustable Legs Designed for Ease of Operation - Pull Pins, Back Up & Chute Automatically Rises into Position
- Transport Your Chute & Corral in One Unit - Carries 10 Portable Panels on Each Side
- Portable Chute Options include: End gates, Rumber® Flooring, & Catwalks

Loading Chutes

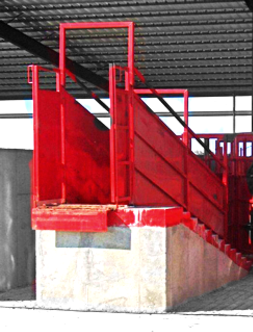

Titan West 16' Steel & Concrete Loading Chute

​

- Sides 16-Gauge Sheet Steel, 62" High
- Spring-Loaded Bumper of 1/2" Plate Steel to Match Truck Bed
- Overlapping Doors fold to Meet Truck or Close Off Exit
- Steps Formed of Steel & Filled with Concrete when Base is Poured
- Base Forms for Concrete Included
- Choice of Left or Right Loading Ramp or Catwalk




​
